Laboratory Chamber

HMG CE PHOTO STABILITY Test Chambers are specially designed to carry out PHOTO STABILITY - Range- UV Accumulated-  100 Wh/m2-  200 Wh/m2 (with Fluorescent & UV Light) on drug and drugs substance according to ICH guidelines, which are adopted by the Industry and implemented, by Food and Drug administration.

HMG WALK IN STABILITY CHAMBER -  Cold Room & Cold Storage -  offers various solutions includes Modular Cold Rooms, Customized    Cold Storages, Controlled Atmosphere Warehouses, Customized Blast Freezers & Chillers, Solar Powered Cold    Rooms, Glass Door Display Chillers, Curd Incubation cum Chilling     Chambers, Fruit Ripening Chambers     to domesticandoverseasmarket. SINGLE LARGET CONTROL COLD ROOM INSTALLED – 6.5 LAKH LTRS ˃ 600 m3 size)

FEATURE OF HMG WALK IN CHAMBER –

1.           Highly cost effective, Low power consumption & easy to install, unassembled & resifting / expandable.

2.           Smallest size of 5000 Ltrs to bigger size over 1 Lakh Ltrs regular models.

3.        Software in compliance with 21 CFR part 11 – Capture Ace / Capture DAS*

4.           Equipment supplied with Protocol Documents

HMG WALK IN CHAMBER -  Cold Room & Cold Storage -  offers various solutions includes Modular Cold Rooms, Customized    Cold Storages, Controlled Atmosphere Warehouses, Customized Blast Freezers & Chillers, Solar Powered Cold    Rooms, Glass Door Display Chillers, Curd Incubation cum Chilling     Chambers, Fruit Ripening Chambers     to domesticandoverseasmarket. SINGLE LARGET CONTROL COLD ROOM INSTALLED – 6.5 LAKH LTRS ˃ 600 m3 size)

FEATURE OF HMG WALK IN CHAMBER –

1.           Highly cost effective, Low power consumption & easy to install, unassembled & resifting / expandable.

2.           Smallest size of 5000 Ltrs to bigger size over 1 Lakh Ltrs regular models.

3.        Software in compliance with 21 CFR part 11 – Capture Ace / Capture DAS*

4.           Equipment supplied with Protocol Documents

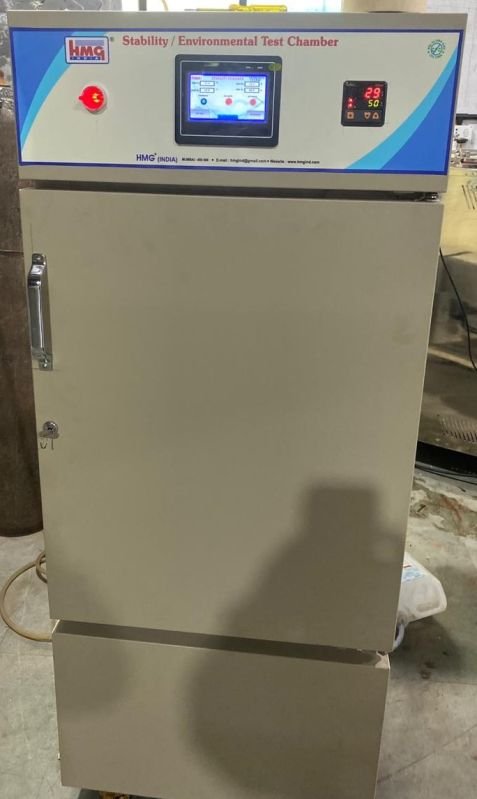

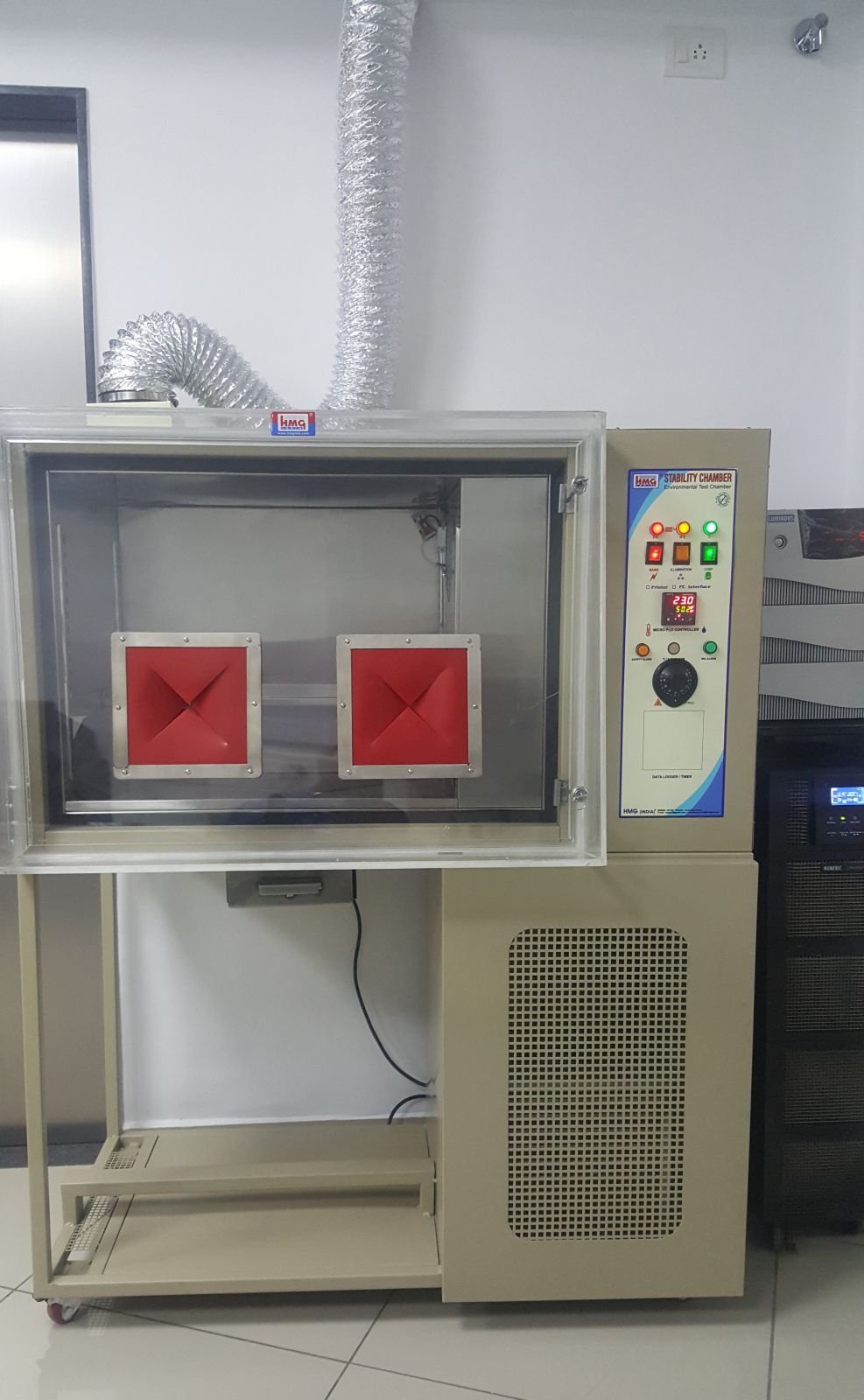

Stability chambers are crucial for testing shelf-life, storage, stability and packaging of drug and associated products according to HCI guidelines. When testing clinical, R&D trails or ongoing stability, our advanced range of stability chambers offer a conditioned and stable humidity/temperature environment for hassle-free operation, powered by a control system that saves time and is easy to use. Major applications of stability chamber include accelerated shelf-life studies, testing stability for drug & pharmaceutical industries, electrical industries (to test electronic components as per IS, IES, JSS & MIL standards) defense and aerospace industries.

From walk-in to reach-in, our laboratory equipment features an excellent temperature range of 10°C to 60°C. along with a humidity range of 35% to 65% RH. The stability chamber intakes air, after which the chamber is heated and uniform distribution occurs throughout for securing samples that are placed on the shelves. The exhaust air gets vented outside via a port, making the entire process as simple as it can be.s

What are the specifications?

• Inner S. Steel Heavy Gauge Chamber & Outer CRCA Powder Coated Finish
• Double-Walled PUF (Poly Urethene) 3inch Thick Foam Insulation
• STD Full View Inner Glass Door

How is the standard design?

• The outer body is made up of Cold Rolled Close Annealed (CRCA) sheet pre-treated with a powder coated finish.
• The inner stability chamber is made from heavy gauge SS, and the gap present between wall is filled with premium grade mineral glass wool.
• The door is fixed with a viewing window (STD) crafted from plexi-glass to monitor the sample without disturbing chamber's temperature.

What are the optimal features?

• Robust microprocessor based PID controllers with process value (PV) and set value (SV), along with HMI controller (found in advanced models) which support touch screen, data logging and transfer data directly to PC or provide a printout.
• Effective temperature range from 100C to 600C, with humidity range of 35% to 95% RH, as per ICH guidelines, the chambers are suitable for storage of 250C at 40%, 300C at 65%, 400C at 75% and 250C at 60%.
• Highly efficient refrigeration system backed by CFC free compressor which is sealed hermetically sealed for silent operation.
• Tubular SS heaters are equipped for regulating desirable temperature within the chamber
• Castor wells are fixed for even distribution of weight and movability
• Inbuilt temperature control system with video and audio alarm for deviation coupled with a wet heater and dry heater safety device.

What are the optional accessories?

• Validation Port
• IQ, OQ and OQ Documents
• Illumination by Fluorescent or U.V Light

hmg laboratory fume chamber / hood:

model:                  3 /4 /5/ 6 feet standard fume hood with base cabinet or without base cabinet.

When handling hazardous volatile substances, radioactive materials, aerosols or dusts, protection should be the top priority, and thus these operations must be performed in a fume chamber. HMG India's highest rated Fume Chambers not only achieve the best results in every relevant test, but even deliver ergonomic benefits to the user that makes the work processes safe and easier.

Our line of fume chambers exemplifies the principles of aerodynamics and sound engineering at all the sash openings. It comes with durable stainless steel (SS) linear inner chamber with uniquely designed shelving system to accommodate large samples and maximize the fuming capacity even while using low level of Alpha & Beta particles. It also offers containment performance equivalent to a low velocity fume chamber for exceptional outcome. We provide different kinds of MOC, ranging from metal, wood and plastic to meet the specific application requirements of our clients.

What are the specifications?

• Double Skin Sandwich Construction
• Outer Metallic Prime GI / CRCA Coated with Epoxy Powder
• Exteriors Laminated with Wooden Marine Plywood & Seasoned Teakwood Frame
• 5mm Thick Dully Framed Safety Glass Operated by Steel String
• PVC/PP Table Top

How is the standard design?

• The outer body is constructed from a metallic prime GI/ CRCA with epoxy powder coated finish
• The interiors are made from brushed stainless steel (SS) of grade 316/ 316L/ 304, and lined with a cement sheet dully epoxy coating.
• The table work space is made from S. Steel / Laminate / Jet Black Granite / PP FRP / Alkali Resistant / PP GL surface to create a strong workspace.
• The models having under bench come with a provision of storing LPG cylinder, and have a middle shelf and shutter.

What are the optimal features?

• Microprocessor based control automates the fuming chamber for maximum performance without any disruptions.
• Temperature sensor to monitor the temp in the interiors and alarm when given limit value exceeds.
• Ceramic, stainless steel, PVC sink along with a water line operated via a Swan neck tap.
• Programmable sockets with electrical points of 5 / 15 Amp , along with remote control knobs for LPG / Water / Vacuum Lines (optional)
• Low noise centrifugal blower made from PPGL having FRP lining with balanced polypropylene impeller powered by Single Phase / Three Phase standard electric motors.
• Ducting of 3mm thick or 6mm thick PPGL lined that supports various fittings such as Reducers, Bend, Motor Guard, Canopy, Flanges and more

What are the optional accessories?

• Under Bench Storage Space
• Base Cabinetry
• Additional Electrical Outlets

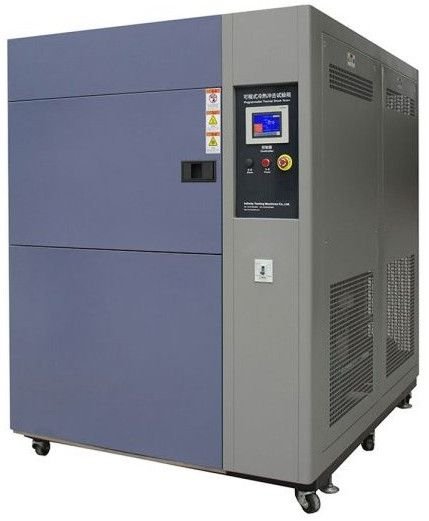

Environmental Test Chamber
